Applications
One Platform, Four Industries
The same electric hot press platform is engineered to different capacities and platen finishes depending on what you're producing.
Laminate PastingMica on ply / boardFrom 120 T
Decorative Veneer PastingVeneer on panelsFrom 120 T
Metal Door ManufacturingFully customised build200 T
Carbon Fiber SheetMirror-polished daylights200 T
The Machine
Electric heating with an in-built boiler — no separate boiler room, no external installation.
Photo 1 / 3

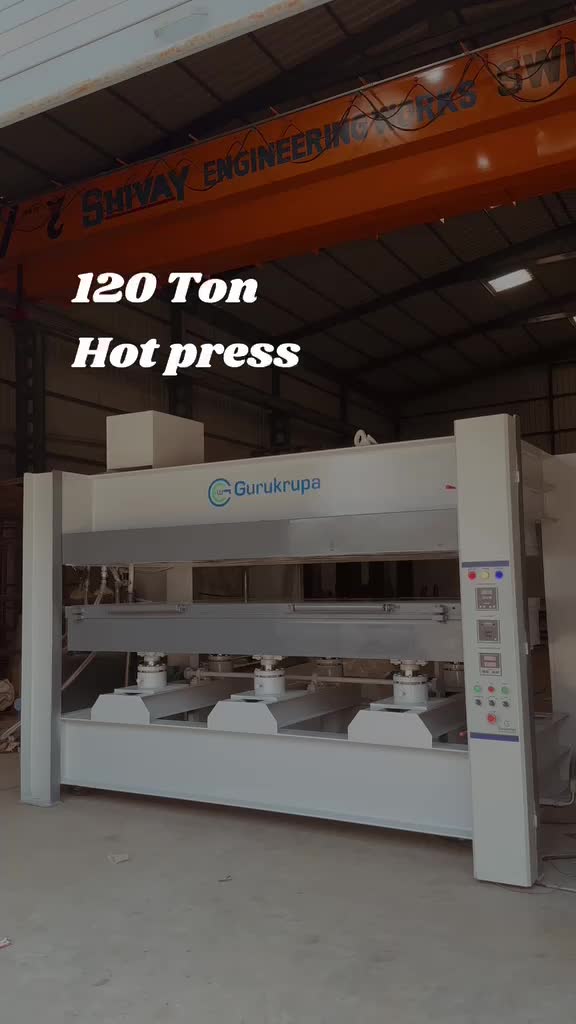

Electric Hot Press — 120 to 300 Ton
In-Built Boiler · Up to 5 Daylights · Built to Order
Our electric hot press delivers uniform heat and pressure for a high-strength, durable bond. The in-built heating system is integrated into the machine — saving floor space, capital cost and separate boiler installation.
Every press is built to order — capacity from 120 to 300 tons, daylights up to 5, and platen size and finish matched to your product.
| Parameter | Specification |
|---|---|
| Capacity Range | 120 – 300 Tons (custom) |
| Daylights | Up to 5 (customisable) |
| Heating Media | Thermic oil · electric heating |
| Standard 120 T · 1 Daylight Build | |
| Platen Size | 2600 × 1300 × 45 mm |
| Number of Cylinders | 6 · 90 mm bore |
| Daylight Gap / Stroke | 300 mm |
| Electric Heating | 18 kW (9 kW × 2) |
| Hydraulic Power Pack | 7.5 HP |
| Sheet Size | 8 × 4 ft |
- Mirror-polished daylights available for carbon fiber sheet production
- In-built heating tank, expansion tank & thermic fluid pump — no external boiler
- Gun-drilled hot platens for even temperature across the full surface
- IS:2062 tested MS plate frame for rigidity and uniform pressure
- Reputed-make hydraulics — Veljan / Polyhydron / Rexroth
